Overview

IceCube

The all time favorite IceCube enclosure now built for native Serial ATA hard drives. It won't get any faster than this! Designed to fit one single 3.5" desktop SATA hard drive.

Features

  • eSATA interface
  • Designed for 3.5" desktop drives
  • Stylish and classic IceCube design
  • Stackable
  • Fanless

IceCube SATA Desktop Hard Drive Enclosure

Specifications

Model No. IC-SANAT
Certifications
  • N/A
Case material
  • Polycarbonate (PC) plastic with internal metal chassis
Application
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
Interface/Ports

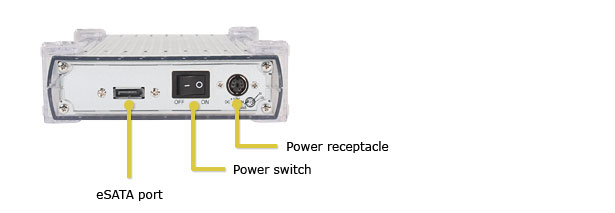

  • 1x eSATA port
Data transfer
  • eSATA up to 3Gbps (300MB/s)
System requirements (PC)
  • eSATA: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. eSATA or PCI card)
System requirements (Mac)
  • eSATA: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. eSATA or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: DC +5V/2A, +12V/2A
Dimensions (LxWxH)
  • 22.5cm x 13.5cm x 3.5cm
Packing accessories
  • IceCube enclosure (HDD not included)
  • eSATA cable
  • Power adapter
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks * This enclosure does not utilize a chipset to convert signals but is simply an external enclosure with an eSATA connector for an internal SATA hard drive.
