Overview

Orion II

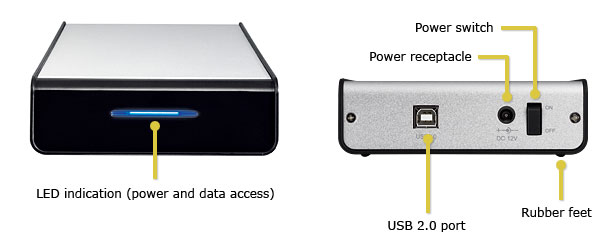

The Orion II is designed for 3.5" SATA hard drives. A unique 2 piece aluminum-plastic enclosure fits together perfectly to secure your valuable data content. Orion stays cool without a fan or heat sink, keeping the design compact and virtually silent during operation.

Features

  • USB 2.0 mass storage compliant
  • Designed for 3.5" desktop drives
  • Compact and lightweight
  • Stackable
  • Fanless

Orion II USB 2.0 Desktop Hard Drive Enclosure

Specifications

Model No. ORN2-U2JS
Certifications N/A
Case material
  • 2 piece aluminum-plastic enclosure
Application
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 2TB
Interface/Ports
  • 1x USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: DC +12V/2A
Dimensions (LxWxH)
  • 20.6cm x 12.2cm x 3.6cm
Packing accessories
  • Orion enclosure (HDD not included)
  • USB 2.0 cable
  • Power adapter
  • User manual
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 34cm (10pcs per carton)
