PD-SATA S2

click the image above to enlarge

Overview

PD-SATA

The PD-SATA S2 is designed for 3.5" Serial ATA hard drives, featuring fanless design and passive cooling. Offering two different interfaces including eSATA and USB 2.0, this sleek and high-performance enclosure is ideal for the modern home/office environment.

Features

Dual interface featuring USB 2.0 and eSATA
Designed for 3.5" desktop drives
Durable all aluminum enclosure
Sleek and timeless design
Fanless

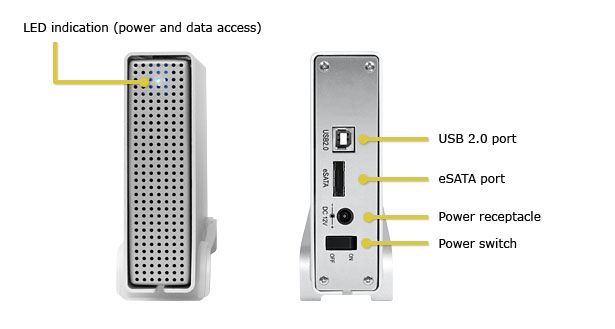

PD-SATA S2 Desktop Hard Drive Enclosure

Specifications

Model No.	PD-SAU2JS1
Certifications	CE FCC
Case material	Aluminum with internal metal chassis for optimized heat dissipation
Application	3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s) Capacity 80GB - 2TB
Interface/Ports	1x eSATA port 1x USB 2.0 High Speed port
Data transfer	eSATA up to 3Gbps (300MB/s) USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)	eSATA: Windows XP/Vista/7 USB 2.0: Windows XP/Vista/7 Your hardware device must have the correct corresponding port (e.g. USB 2.0, eSATA or PCI card) eSATA Plug and Play support required for host card driver
System requirements (Mac)	eSATA: Mac OS 10.2 or above USB 2.0: Mac OS 10.2 or above Your hardware device must have the correct corresponding port (e.g. USB 2.0, eSATA or PCI card) eSATA Plug and Play support required for host card driver
System environment	Operating Temperature: 5°C ~ 40°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 70°C Storage Humidity: 10%RH ~ 90%RH
Power supply	External power supply (UL, cUL, CE, TUV approved) Input: AC 100-240V, 1.2A, 50-60Hz Output: DC +12V/2A
Dimensions (LxWxH)	22.8cm x 13.7cm x 3.5cm
Packing accessories	PD-SATA enclosure with vertical stand (HDD not included) eSATA cable USB 2.0 cable Power adapter User manual
Carton/Packaging	Retail Box Size: 32cm x 24cm x 10.5cm Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
