PD-SATA Super-S

PD-SATA Super-S
click the image above to enlarge


PD-SATA Super-S PD-SATA Super-S PD-SATA Super-S



Overview

PD-SATA

The PD-SATA Super-S Combo is designed for 3.5" Serial ATA hard drives, featuring fanless design and passive cooling. Offering four different interfaces (FireWire 400/800, USB 2.0, eSATA) all in one unit, this sleek and high-performance enclosure is ideal for the modern home/office environment.

Features

  • 4-in-1 interface featuring USB 2.0, FireWire 400/800 and eSATA
  • Designed for 3.5" desktop drives
  • Durable all aluminum enclosure
  • Sleek and timeless design
  • Fanless

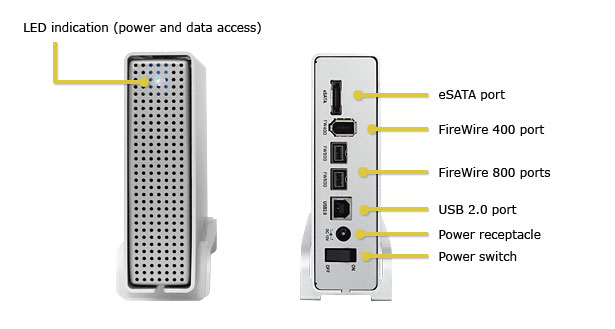

PD-SATA Super-S Combo Desktop Hard Drive Enclosure

Specifications

Model No. PD1-SAFBA4U2OS
Certifications
  • CE
  • FCC
Case material
  • Aluminum with internal metal chassis for optimized heat dissipation
Application
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 3TB
Interface/Ports
  • 1x eSATA port
  • 2x 9-pin FireWire 800 ports
  • 1x 6-pin FireWire 400 port
  • 1x Mini USB 2.0 High Speed port
Data transfer
  • eSATA up to 3Gbps (300MB/s)
  • FireWire 800 (1394b) up to 800Mbps (100MB/s)
  • FireWire 400 (1394a) up to 400Mbps (50MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • eSATA: Windows XP/Vista/7
  • FireWire 400/800: Windows XP/Vista/7
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for host card driver
System requirements (Mac)
  • eSATA: Mac OS 10.2 or above
  • FireWire 400/800: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for host card driver
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: DC +12V/1.5A
Dimensions (LxWxH)
  • 22.8cm x 13.7cm x 3.5cm
Packing accessories
  • PD-SATA enclosure with vertical stand (HDD not included)
  • eSATA cable
  • USB 2.0 cable
  • FireWire 400 cable
  • FireWire 800 cable
  • Power adapter
  • User manual
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
