PD-SATA Super-S3

click the image above to enlarge

Overview

PD-SATA

The PD-SATA Super-S3 is designed for 3.5" Serial ATA hard drives, featuring fanless design and passive cooling. Offering three different interfaces (FireWire 800, USB 3.0, eSATA) all in one unit, this sleek and high-performance enclosure is ideal for the modern home/office environment.

Features

3-in-1 interface featuring USB 3.0 SuperSpeed, FireWire 800 and eSATA
Designed for 3.5" desktop drives
Durable all aluminum enclosure
Sleek and timeless design
Fanless

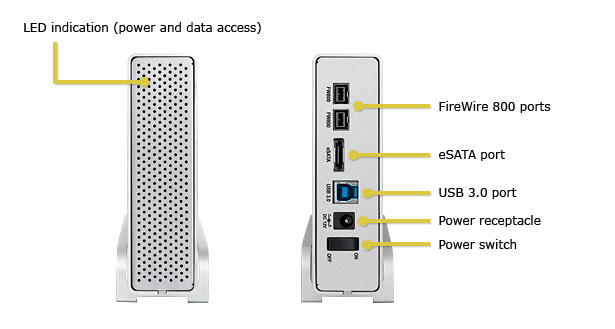

PD-SATA Super-S3 Desktop Hard Drive Enclosure

Specifications

Model No.	PD1-SBU3OS
Certifications	CE FCC
Case material	Aluminum with internal metal chassis for optimized heat dissipation
Application	3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s) Capacity 80GB - 3TB
Interface/Ports	1x eSATA port 2x 9-pin FireWire 800 ports 1x USB 3.0 SuperSpeed port
Data transfer	eSATA up to 3Gbps (300MB/s) FireWire 800 (1394b) up to 800Mbps (100MB/s) FireWire 400 (1394a) up to 400Mbps (50MB/s) USB 3.0 up to 5Gbps (625MB/s) USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)	eSATA: Windows XP/Vista/7 FireWire: Windows XP/Vista/7 USB: Windows XP/Vista/7 Your hardware device must have the correct corresponding port (e.g. USB 3.0, FireWire 800 or PCI card) eSATA Plug and Play support required for eSATA host controller
System requirements (Mac)	eSATA: Mac OS 10.2 or above FireWire: Mac OS 10.2 or above USB 2.0: Mac OS 10.2 or above Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card) eSATA Plug and Play support required for eSATA host controller
System environment	Operating Temperature: 5°C ~ 40°C Operating Humidity: 20%RH ~ 80%RH Storage Temperature: -20°C ~ 70°C Storage Humidity: 10%RH ~ 90%RH
Power supply	External power supply (UL, cUL, CE, TUV approved) Input: AC 100-240V, 1.2A, 50-60Hz Output: DC +12V/1.5A
Dimensions (LxWxH)	22.8cm x 13.7cm x 3.5cm
Packing accessories	PD-SATA enclosure with vertical stand (HDD not included) eSATA cable USB 3.0 cable FireWire 800 cable Power adapter User manual
Carton/Packaging	Retail Box Size: 32cm x 24cm x 10.5cm Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks	USB 3.0 is currently not available for the Mac except with a special PCI card that comes bundled with the corresponding USB 3.0 driver. However, the device can always be used with the older USB 2.0 connection.
