PD-SATA U2

PD-SATA U2
click the image above to enlarge


PD-SATA U2 PD-SATA U2 PD-SATA U2



Overview

PD-SATA

The PD-SATA U2 is designed for 3.5" Serial ATA hard drives, featuring fanless design and passive cooling. Offering the widely popular USB 2.0 High Speed interface, this sleek and high-performance enclosure is ideal for the modern home/office environment.

Features

  • Popular USB 2.0 High Speed connectivity
  • Designed for 3.5" desktop drives
  • Durable all aluminum enclosure
  • Sleek and timeless design
  • Fanless

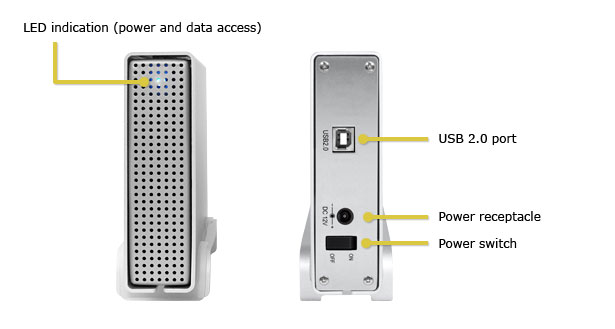

PD-SATA U2 Desktop Hard Drive Enclosure

Specifications

Model No. PD-U2JS1
Certifications
  • CE
  • FCC
Case material
  • Aluminum with internal metal chassis for optimized heat dissipation
Application
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 2TB
Interface/Ports
  • 1x USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +12V/2A
Dimensions (LxWxH)
  • 22.8cm x 13.7cm x 3.5cm
Packing accessories
  • PD-SATA enclosure with vertical stand (HDD not included)
  • USB 2.0 cable
  • Power adapter
  • User manual
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks

Resources
