SK-3500 Super-S3

SK-3500 Super-S3
click the image above to enlarge


SK-3500 Super-S3 SK-3500 Super-S3 SK-3500 Super-S3 SK-3500 Super-S3



Overview

SK-3500

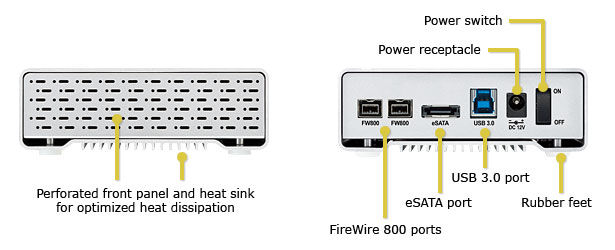

The SK-3500 HDD enclosure provides a combination of cutting-edge technology, durability and flexibility. Stylish, compact and simple to use, this fanless aluminum enclosure is designed for the latest 3.5" SATA hard drives and ideal for quiet working environments.

Features

  • Versatile interface including eSATA, FireWire 800 and USB 3.0 SuperSpeed
  • Durable all aluminum enclosure
  • Large heatsink for passive cooling
  • Stackable
  • Fanless

SK-3500 Super-S3 Desktop Hard Drive Enclosure

Specifications

Model No. SK3-SBU3OS
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 4TB
Interface/Ports
  • 1x eSATA port
  • 2x 9-pin FireWire 800 ports
  • 1x USB 3.0 SuperSpeed port
Data transfer
  • eSATA up to 3Gbps (300MB/s)
  • FireWire 800 (1394b) up to 800Mbps (100MB/s)
  • FireWire 400 (1394a) up to 400Mbps (50MB/s)
  • USB 3.0 up to 5Gbps (625MB/s)
  • USB 2.0 up to 480Mbps (60MB/s)
System requirements (PC)
  • eSATA: Windows XP/Vista/7
  • FireWire: Windows XP/Vista/7
  • USB: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 3.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for eSATA host controller
System requirements (Mac)
  • eSATA: Mac OS 10.2 or above
  • FireWire: Mac OS 10.2 or above
  • USB 3.0: Mac OS 10.7 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)
  • eSATA Plug and Play support required for eSATA host controller
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV, PSE, BSMI, C-Tick)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: DC +12V/2A
Dimensions (LxWxH)
  • 22.2cm x 11.4cm x 3.9cm
Packing accessories
  • SK-3500 enclosure (HDD not included)
  • eSATA cable
  • USB 3.0 cable
  • FireWire 800 cable
  • Power adapter
  • User manual
Carton/Packaging
  • Retail Box Size: 36.8cm x 17cm x 8.4cm
  • Carton Size: 45cm x 36.5cm x 39.5cm (10pcs per carton)
