AR6425 PCB

AR6425

The AR6245 from inXtron is an entry-level advertising solution that allows the user to play content from an array of media cards on to a screen. With a host of features and semi-customisable software, it is an extremely cost-effective digital signage player. The integrated real-time clock and the multi-playlist mode allow for scheduled content delivery, in order to get your message across when it's needed most.

Features

• Photo, Music, Video and File browser
• Plays MPEG-1, MPEG-2, MPEG-4, WAV, MP3 and JPG
• Supports CF, MS (Pro/Duo), SD and MMC cards
• Offers Composite, S-Video and VGA video output
• Real time clock (RTC)
• 37 key slim type remote control for navigation, creating playlists and editing files
• Single playlist support, editable via remote control
• Multiple playlist support and playlist by time or date
• 4 preset play modes for active and passive playback
• Automatic slideshow (JPGs) with background music (MP3)
• Auto start and shutdown timer for scheduled playback
• Firmware upgradeable

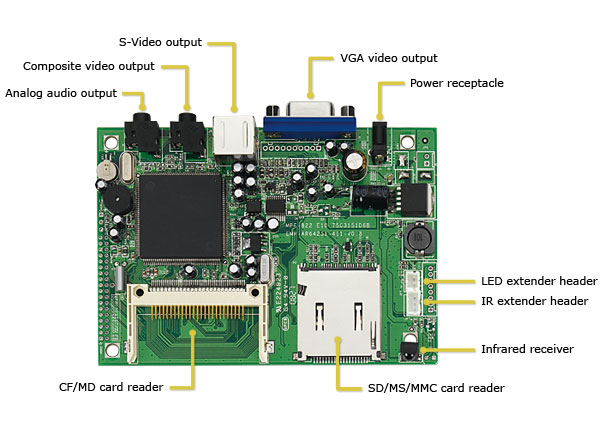

AR6425

Standard circuit board as built into the AR6 Pro retail product, including 4-1 card reader and external audio & video connectors.

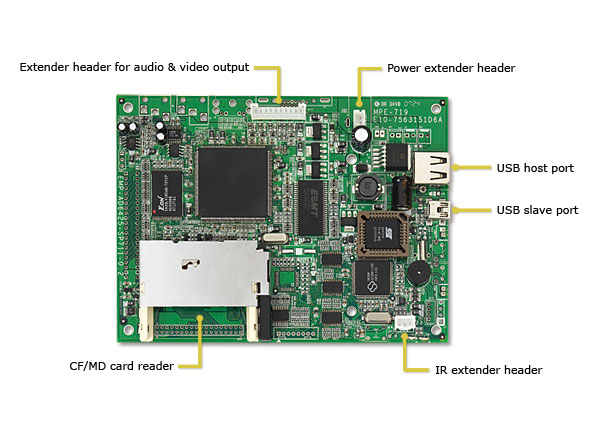

AR6425-USB

Comes with USB host and slave function, internal audio & video connectors but only supports CF cards. Content can be updated on the fly using its USB host port to automatically copy files from a USB stick or by connecting it to a computer via its USB slave connection.

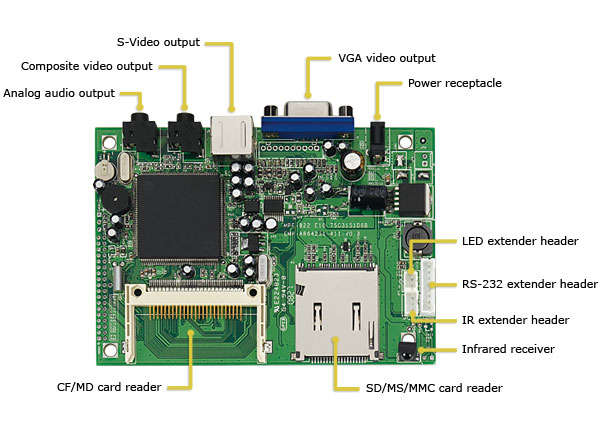

AR6425-RS232

Comes with an additional extender header for an RS-232 serial connection. Designed for touch panels and kiosk or other interactive displays where a RS-232 connection is required to interact with the media player (accepts playlist status via AUX7 pin or via M5 command).
