Overview

D8-M3 Lite

The D8-M3 Lite is a cost-effective yet powerful solution for your built-in advertisement system requirements, now with even better high definition playback, supporting the H.264 file format for high quality HD video playback. With the real-time clock (RTC) and watchdog timer (WDT), this system can be used just about anywhere for targeted advertising with high resolution content playing from its internal CF card or hard drive. Content can easily be maintained by pulling out the CF card or by using the USB auto-copy function to update media files and playlists from an attached USB drive, without the need of any computer or remote control.

Features

  • Hardware and software watchdog timer (WDT)
  • Real time clock with battery (RTC)
  • Multiple playlist support to allow scheduled content playback
  • Automated play modes for easy setup
  • USB auto-copy function for easy updates by staff
  • Firmware upgradeable through CF card and USB drive
  • Up to 1080i or with HDMI up to 1080p high definition video output
  • ISO, WMV 9 and H.264 high definition video playback support
  • Multilingual GUI with support for external TTF font

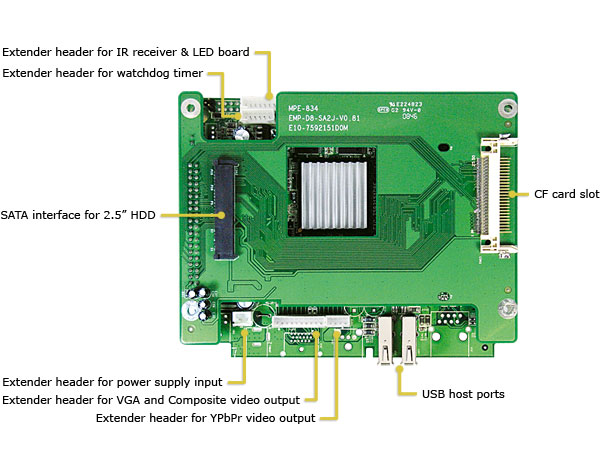

D8-M1 Lite Details

Specifications

Model No. D8-M3 Lite (available with or without HDMI video output, see D8-M3 for complete product)
Certifications N/A
Processor
  • ARM 7 200Mhz
Memory
  • 128MB SDRAM
  • 8MB flash
Case material N/A
Internal storage
  • CF card
  • 2.5" SATA hard drive
Video formats
  • MPEG-1
  • MPEG-2
  • MPEG-4
  • WMV9
  • H.264
  • ISO
Audio formats
  • WAV
  • MP3
  • WMA
  • AC3
  • OGG
Image formats
  • JPG
Supported USB devices
  • Mass Storage class devices using FAT12, FAT16 or FAT32 including USB hard drives, card readers and USB memory sticks (USB hubs are not supported).
Input interface
  • USB 2.0 High Speed (USB1.1 backwards compatible)
Video output interface
  • Composite Video
  • Analog Component Video up to 720p and 1080i
  • VGA up to 1024x768
  • HDMI (optional)
Audio output interface
  • Dual stereo analog audio
OSD languages
  • English
  • Traditional Chinese
  • Simplified Chinese
System requirements
  • Windows XP or Vista (only required for config and drive tool)
  • Display with internal connection for audio/video input (Composite, YPbPr or VGA)
  • Power supply with a minimum of DC +12V/2A (internal extender header)
Power supply
  • Power supply with a minimum of DC +12V/2A (internal extender header)
Dimensions (LxWxH)
  • 14cm x 11cm x 2cm
Packing accessories
  • D8-M1 Lite circuit board
  • Daughter board for CF card and 2.5" IDE hard drive
Optional accessories
  • Daughter board for CF card and 2.5" IDE hard drive
Carton/Packing
  • Bulk package on request
Remarks
  • Extender headers are for internal connection, this device does not come with external audio/video connectors.
  • Only one internal drive can be used at the time (e.g. CF or HDD).
