Overview

D8-PCB2

The D8 is the ideal device for all your professional advertisement system requirements. With the available wireless kit, real-time clock (RTC) and watchdog timer (WDT), this system can be used just about anywhere for targeted advertising with up to date content playing from its internal CF card or hard drive, all maintained from a central server.

Features

  • Hardware and software watchdog timer (WDT)
  • Real time clock with battery (RTC)
  • Multiple playlist support to allow scheduled content playback
  • Scrolling text message (ticker)
  • Scheduled content download from HTTP or FTP server
  • Upload function to get feedback via FTP (system logs and any other files)
  • Automated play modes for easy setup
  • USB auto-copy function for easy updates by staff
  • Firmware upgradeable through CF card, USB drive or network
  • Up to 1080i high definition video output
  • ISO and WMV 9 high definition playback support
  • 802.11 b/g wireless connection with WEP 64-bit and 128-bit support
  • Samba network protocol support

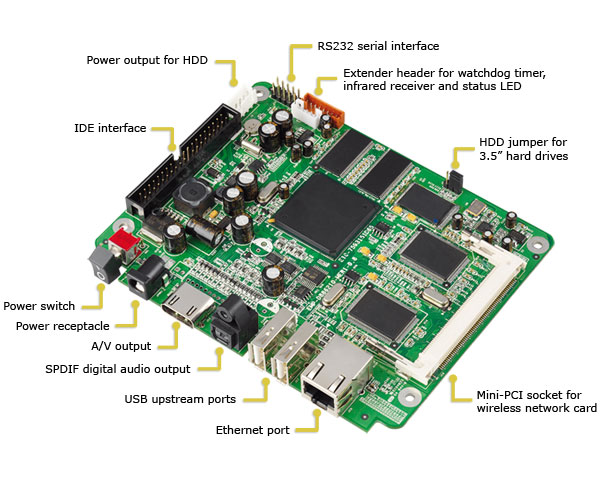

D8-PCB2 Details

Specifications

Model No. MP-D886216-11 (see D8-M1 for complete product)
Certifications N/A
Processor
  • ARM 7 166Mhz
Memory
  • 64MB SDRAM
  • 8MB flash
Case material N/A
Internal storage
  • 3.5" IDE hard drive
Video formats
  • MPEG-1
  • MPEG-2
  • MPEG-4
  • WMV9
  • ISO
Audio formats
  • WAV
  • MP3
  • WMA
  • AC3
  • OGG
Image formats
  • JPG
Supported USB devices
  • Mass Storage class devices using FAT12, FAT16 or FAT32 including USB hard drives, card readers and USB memory sticks (USB hubs are not supported).
Input interface
  • USB 2.0 High Speed (USB1.1 backwards compatible)
  • Ethernet 10-baseT/100-baseT
Video output interface
  • Composite Video
  • S-Video
  • Analog Component Video up to 720p and 1080i
  • SCART RGB (optional cable)
  • VGA up to 1024x768
Audio output interface
  • Dual stereo analog audio
  • SPDIF optical output (optional cable)
OSD languages
  • English
System requirements
  • Windows XP or Vista (only required for config tool or SMB shares)
  • 10/100Mbps Network and Internet connection
  • Network switch or router
  • TV or display with video/audio input (Composite RCA or better yet S-Video or Component RCA)
  • Optional amplifier with surround speaker system
Power supply
  • External power adapter universal auto-switching (UL, cUL)
  • Input: AC 100-240V
  • Output: DC +12V/2A
Dimensions (LxWxH)
  • 14cm x 11cm x 1.5cm
Packing accessories
  • D8-PCB2 circuit board
Optional accessories N/A (see D8-M1 for available accessories)
Carton/Packing
  • Bulk package on request
Remarks
  • To make use of all features the D8 offers, an Ethernet connection with access to the local network and internet, plus an internal hard drive is required.
