AR6 Pro

AR6

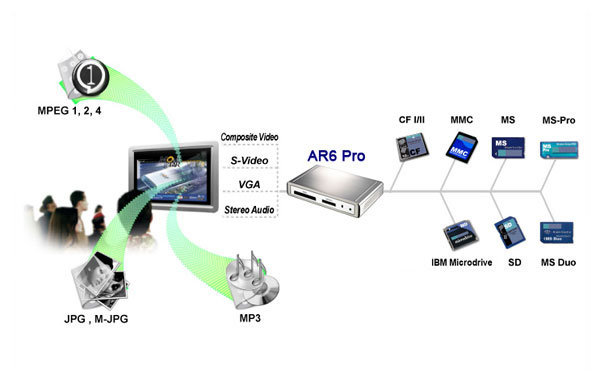

The AR6 Pro from inXtron is an entry-level advertising solution that allows the user to play content from an array of media cards on to a screen. With a host of features and semi-customisable software, it is an extremely cost-effective digital signage player. The integrated real-time clock and the multi-playlist mode allow for scheduled content delivery, in order to get your message across when it's needed most.

Features

• Photo, Music, Video and File browser
• Plays MPEG-1, MPEG-2, MPEG-4, WAV, MP3 and JPG
• Supports CF, MS (Pro/Duo), SD and MMC cards
• Offers Composite, S-Video and VGA video output
• Real time clock (RTC)
• 37 key slim type remote control for navigation, creating playlists and editing files
• Single playlist support, editable via remote control
• Multiple playlist support and playlist by time or date
• 4 preset play modes for active and passive playback
• Automatic slideshow (JPGs) with background music (MP3)
• Auto start and shutdown timer for scheduled playback
• Firmware upgradeable

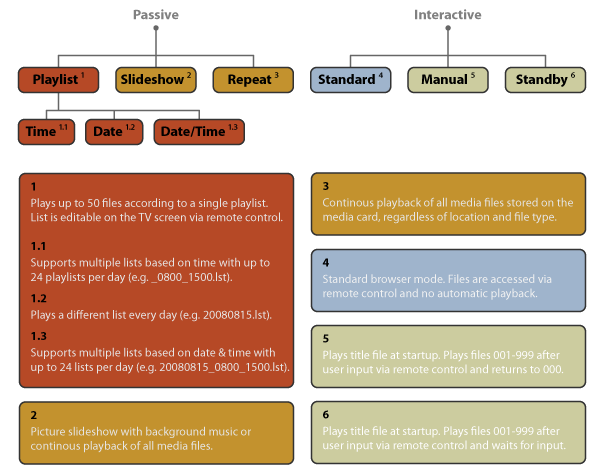

The AR6 Pro digital signage media player offers both active and passive play modes to cover a wide range of functionality, from the easy and quick setup to the advanced playlist. With only a simple and quick change of settings, the media player can be set to play all files continously or present a picture slideshow with background music. For more advanced playback, a playlist can be created on the fly with the help of the remote control and edited right on the TV screen or for multiple playlists that depend on date and time, they can be edited on the computer. Alternatively, the standard media player mode can of course also be used to browse for the files and display one at the time.

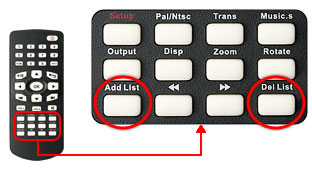

The new 37 key slim type remote control includes a numeric pad and several extra shortcut keys, making changes and controlling the media player easier than ever before. The single playlist can be edited on the fly, simply by selecting a file in the file library and pressing one key to either add it or remove it from the playlist. The numeric pad in combination with the new interactive play modes, provides the player with a kiosk mode, allowing users to press a number combination to play the corresponding media file and then automatically return to the title file.

• User manuals
• High resolution images
• Frequently asked questions

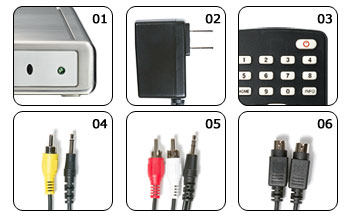

AR6 Pro - Standard Package Contents

[01] AR6 Pro media player [02] Power adapter 110/240V auto switching, +12V/1A [03] Infrared remote control [04] Composite video cable PN: E14-3411500000 [05] Analog audio cable PN: E14-3431500000 [06] S-Video cable PN: E14-3421500000
