Overview

D8-DMA

The D8 is the ideal entry-level device for all your advertisement system requirements. Available in PCB-only, as a standalone device or as a complete, all-in-one unit with space for an internal HDD, the D8 offers functionality and flexibility at an extremely affordable price. The D8 offers customized firmware features and optional 802.11b/g wireless connection, as well as play list support and remote updates.

Features

Hardware and software watchdog timer (WDT)
Real time clock with battery (RTC)
Multiple playlist support to allow scheduled content playback
Scrolling text message (ticker)
Scheduled content download from HTTP or FTP server
Upload function to get feedback via FTP
Automated play modes for easy setup
USB auto-copy function for easy updates by staff
Firmware upgradeable through CF card, USB drive or network
Up to 1080i high definition video output
ISO and WMV 9 high definition playback support
Optional 802.11 b/g wireless connection with WEP 64-bit and 128-bit support

D8 Advertising System

The D8 digital media adapter is connected to your local network using a standard Ethernet or wireless connection, enabling you to access and broadcast content from any computer on your network. Combined with its ability to access a remote server over the internet, new content can be downloaded over night and stored on the local drive. Using the playlist function, this system can be used for targeted advertisement with up to date content, all maintained from a central content server.

Playback Modes

File Formats
Connected to the TV or any other display with the corresponding video inputs, it can playback media files such as videos, music and photos directly from its CR card, attached USB drives or via local network. The D8 supports video formats like MPEG-4 (AVI, XviD), high definition WMV9 and even uncompressed high quality ISO files!

Only with the D8 can you play DVDs (using the .ISO format) and watch them as if they were running from the original disc. Yes, that includes the menu, chapter selection, audio channels, subtitles and extra features just like on your standard DVD player. Instead of burning your sales or product presentation onto a DVD disc, you can prepare that multilingual product introduction as you usually would but then save it as .ISO file and store it directly on the hard disk of the D8.

Specifications

Model No.	D8-LNU2SVV1
Certifications	N/A
Processor	ARM 7 166Mhz
Memory	64MB SDRAM 8MB flash
Case material	High quality aluminum colored plastic
Internal storage	CF card (requires CF daughter board)
Video formats	MPEG-1 MPEG-2 MPEG-4 WMV9 ISO
Audio formats	WAV MP3 WMA AC3 OGG
Image formats	JPG
Supported USB devices	Mass Storage class devices using FAT12, FAT16 or FAT32 including USB hard drives, card readers and USB memory sticks (USB hubs are not supported).
Input interface	USB 2.0 High Speed (USB1.1 backwards compatible) Ethernet 10-baseT/100-baseT Optional Wireless 802.11b/g with WEP 64-bit and 128-bit support
Video output interface	Composite Video S-Video Analog Component Video up to 720p and 1080i SCART RGB (optional cable) VGA up to 1024x768
Audio output interface	Dual stereo analog audio SPDIF optical output (optional cable)
OSD languages	English
System requirements	Windows XP or Vista (only required for config tool or SMB shares) 10/100Mbps Network and Internet connection Network switch or router TV or display with video/audio input (Composite RCA or better yet S-Video or Component RCA) Optional amplifier with surround speaker system
Power supply	External power adapter universal auto-switching (UL, cUL) Input: AC 100-240V Output: DC +12V/2A
Dimensions (LxWxH)	16.5cm x 16.5cm x 3.8cm

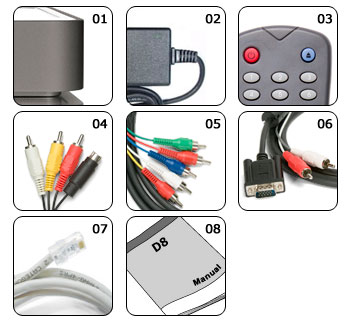

Packing accessories	D8-DMA Infrared remote control Power adapter Composite, Component and VGA AV cable Ethernet cable User manual
Optional accessories	CF daughter board Wireless kit
Carton/Packing	Retail Box Size: 27cm x 20.4cm x 8.8cm Carton Size: 46cm x 42.8cm x 29.6cm (10pcs per carton)
Remarks	To make use of all features the D8 offers, an Ethernet connection with access to the local network and internet, plus an internal CF card is required. Only one internal drive can be used at the time (e.g. CF or HDD).
