D8-M3

D8-M3

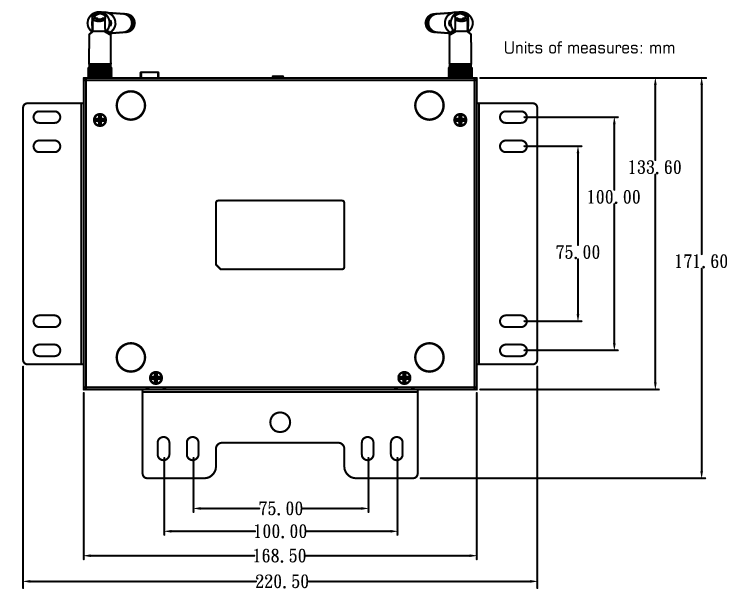

The D8-M3 is the ideal device for all your professional advertisement system requirements, now with even better high definition playback, featuring HDMI digital audio/video output and H.264 file support. The robust metal housing provides both protection and ventilation for internal components, and VESA mount design to securely fasten the unit to the back of most standard flat panels. With included wireless kit, real-time clock (RTC) and watchdog timer (WDT), this system can be used just about anywhere for targeted advertising with up to date content playing from its internal CF card, all maintained from a central server.

Features

• Hardware and software watchdog timer (WDT)
• Real time clock with battery (RTC)
• Multiple playlist support to allow scheduled content playback
• Bitmap based ticker (scrolling text message)
• Scheduled content download from HTTP or FTP server
• Upload function to get feedback via FTP (system logs and any other files)
• Automated play modes for easy setup
• USB auto-copy function for easy updates by staff
• Firmware upgradeable through CF card, USB drive or network
• Up to 1080p high definition video output
• Digital audio/video output over HDMI
• ISO, WMV 9 and H.264 high definition playback support
• 802.11 b/g wireless connection with WEP 64-bit and 128-bit support (WPA available on request)
• RS-232 serial connection for interactive input via touch panel, keyboard or barcode reader
• Multilingual GUI with support for external TTF font

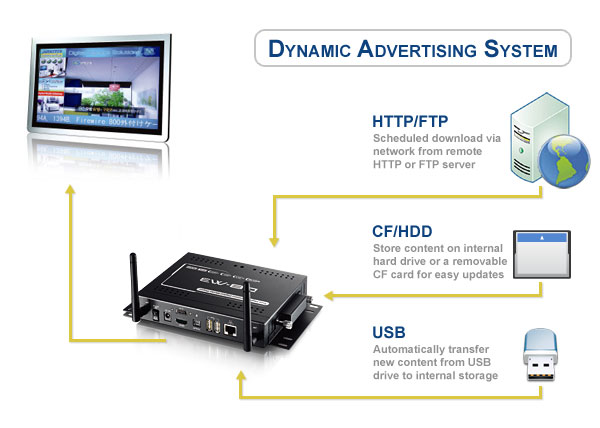

The D8-M3 digital media adapter is connected to your local network using a standard Ethernet or wireless connection, enabling you to access and broadcast content from any computer on your network. Combined with its ability to access a remote server over the internet, new content can be downloaded over night and stored on the local drive. Using the playlist function, this system can be used for targeted advertisement with up to date content, all maintained from a central content server.

File Formats
Connected to the TV or any other display with the corresponding video inputs, it can playback media files such as videos, music and photos directly from its CF card, attached USB drives or via local network. The D8-M3 supports standard video formats like MPEG-4 (AVI, XviD), high definition WMV9 or H.264 and even uncompressed high quality ISO files!

Only with the D8-M3 can you play DVDs (using the .ISO format) and watch them as if they were running from the original disc. Yes, that includes the menu, chapter selection, audio channels, subtitles and extra features just like on your standard DVD player. Instead of burning your sales or product presentation onto a DVD disc, you can prepare that multilingual product introduction as you usually would but then save it as .ISO file and store it directly on the hard disk of the D8-M3.

• User manuals
• High resolution images
• Frequently asked questions
• Video output resolution chart
• Configuration Tool
• Drive Tool
• Firmware

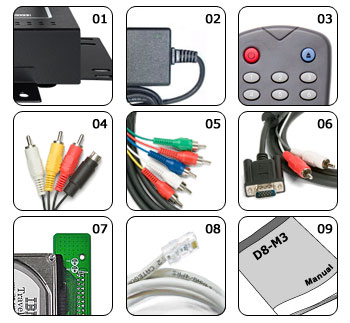

D8-M3 - Standard Package Contents

[01] D8-M3 (no CF card included) [02] Power Adapter 110/240V auto switching, +12V/2A PN: E11-1111024005 (USA) [03] Infrared remote control PN: E10-U147000000 [04] Composite AV cable (Composite RCA, S-Video mini DIN, left audio RCA, right audio RCA) PN: E14-3421500003 [05] YPbPr AV cable (YPbPr color component video - 3 RCA, left audio RCA, right audio RCA) PN: E14-3421500005 [06] VGA AV cable (15-pin male VGA, left audio RCA, right audio RCA) PN: E14-3421500004 [07] 2.5" IDE HDD (internal) & CF (external) daughter board PN: MP-D82507-IDE [08] Ethernet cable PN: E14-371A150000 [09] Manual PN: E15-5759100013

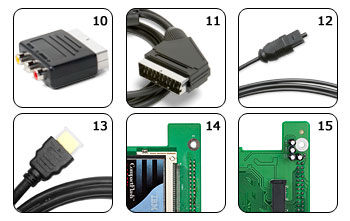

D8-M3 - Optional Accessories

[10] SCART adapter PN: E10-D040212203 [11] SCART AV cable (SCART cable for Europe with RGB support) [12] Digital audio cable (S/PDIF optical) PN: E14-3641000000 [13] HDMI digital audio/video cable [14] CF (internal) daughter board [15] 2.5" SATA HDD (internal) & CF (external) daughter board Note: CF card and HDD are not included and only for illustration purposes.
