Cloud LAN Disk Firmware

Supported products:
CY1P-LNU3JA, CD-LNU3JA

Files

File	Description	File size	Last modified
Firmware	Firmware version ACH-1.03t-1.13	934 Kb	Dec 01, 2011
Firmware History	History of previous changes	1 Kb	Dec 01, 2011

Warning

• Never turn off your unit during the firmware update procedure. This may damage your device! If the upgrade fails (e.g. power supply failure during firmware update), you may not be able to operate your device anymore.
• This firmware is only for inXtron's standard products and specifically the model(s) as mentioned above. DO NOT use this firmware for any other devices!

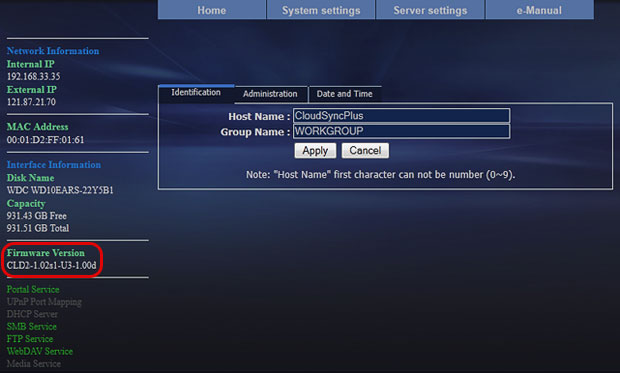

Where to find the current firmware version

1. Start your network drive, open the web browser and login as administrator.
2. Go to Settings and the current firmware version will be shown on the left hand side under "Firmware Version".
3. If your current version is the same as the latest release seen above, your unit does not need to be updated. If the firmware is older than that, follow the steps as described below to update the firmware.


How to update the firmware

1. Download the latest firmware and save it on your local disk. Unzip the *.zip file to extract the *.bin file.
2. Turn on your network drive, use the web browser and log in as administrator.
3. Go to "Maintain" in the "Server settings" menu and select Firmware.
4. Click Browse and locate the new firmware (*.bin file) on your computer.

5. Click OK to confirm the pop-up dialog.


6. Wait until the page is refreshed automatically and the pop-up dialog confirms the update has completed. This might take a couple of minutes, so make sure the device is not interrupted until the update is completed!


7. Click OK to confirm the pop-up dialog.

8. Go to "Reboot" and click Reboot to restart the system.

9. Done!
