Overview

NT2

The ultra compact design of the NT2 makes this dual-bay storage enclosure one of the smallest in the market, yet still packing a punch when it comes to flexibility and performance. Installing the 3.5" hard drives is easy and quick, thanks to the screwless design. The system offers two setup options, either Non-RAID to create two independent volumes or JBOD to combine both drives and create one large volume.

Features

  • Configurable drive setup (JBOD or Non-RAID)
  • USB mass-storage compliant (USB 2.0 and USB 1.1)
  • Compact and screwless design for easy HDD installation
  • Built-in low speed (2800RPM) fan for extra cooling
  • Security lock slot

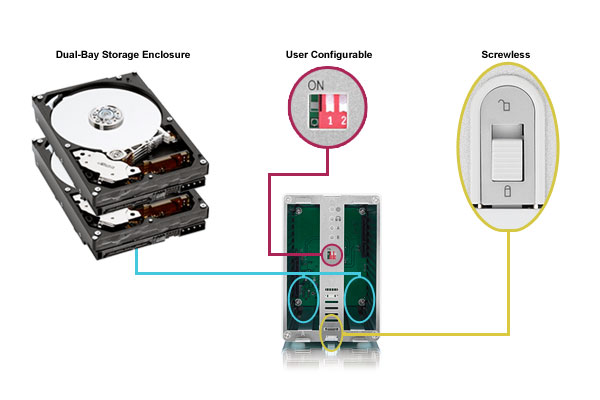

Compact & Screwless Design

The small footprint and screwless design makes this the ideal storage expansion for your crowded desktop. In a matter of seconds, hard drives can be installed or exchanged without any extra tools.

NT2 U2 Overview

Dual-Bay Storage Enclosure

The NT2 is designed to house up to two 3.5" SATA hard drives with the option to setup your drives according to your own preferences. Create one large volume for extra storage or use the two drives as independent volumes.

NT2 U2 Overview

RAID

Non-RAID

The drives show up as independent volumes. Each drive can be formatted and accessed separately. If one drive fails, the other is not affected. This setting does not provide any performance or redundancy benefits.

1 or 2 hard drives Non-RAID

JBOD - Disk Spanning

The drives show up as one large single volume, with a total capacity of twice the size of the drive with the smallest capacity. Spanning is an array (not RAID) that is written sequentially across the drives. By itself, it does not provide any performance or redundancy benefits. If one drive becomes damaged, the whole array can become corrupted.

2 hard drives RAID 0

Remarks

  • The NT2 U2 does not support RAID. For RAID 0 or RAID 1, see the other models in the NT2 series of hard drive enclosures.

Specifications

Model No. NT2-U2JS
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum housing with plastic front
Application
  • Up to two 3.5" SATA-I or SATA-II hard drives (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 3TB per HDD
  • Supports large volumes in excess of 2TB
RAID mode
  • Non-RAID
  • JBOD spanning
Interface/Ports
  • 1x USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Protection: OCP, OVP, SCP
  • Input: AC 100-240V, 50-60Hz
  • Output: DC +5V/2A, +12V/2A

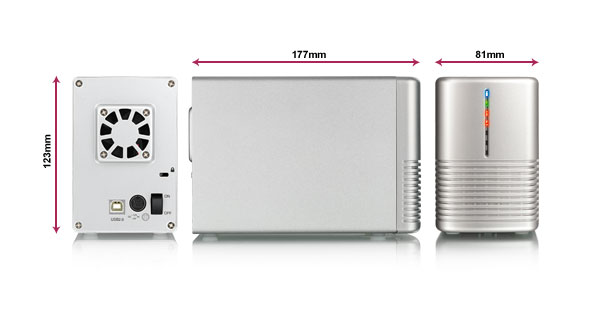

Dimensions (LxWxH)
  • 17.7cm x 12.3cm x 8.1cm
Packing accessories
  • NT2 enclosure (HDD not included)
  • USB 2.0 cable
  • Power adapter
  • User manual
Carton/Packing
  • Retail Box Size: 27cm x 22.4cm x 13cm
  • Carton Size: 57cm x 42cm x 25cm (6pcs per carton)
Remarks
  • In order for the computer to access volumes larger than 2TB, both the hardware and Operating System need to support large volumes (e.g.: Windows Vista, Windows 7 or Mac OS 10.4 and above).
