CloudDock

CloudDock
click the image above to enlarge


CloudDock CloudDock CloudDock CloudDock

USB 3.0 SuperSpeed
Samba Speed 60MB/s
Compatible with Regza TV Recording
App Store
Android Market




Overview

CloudDock

This hard drive docking station is a fully functional network drive (NAS) that allows users to login over the internet plus a USB 3.0 direct attached storage device (DAS) for super-speed file transfers. The docking design makes it easy to quickly swap drives, and can be used with either 2.5-inch or 3.5-inch SATA hard drives. Our free iPhone, iPad and Android Apps allow for easy access on mobile devices.

Features

  • Hybrid interface with USB 3.0 and Gigabit Ethernet connection
  • Built-in UPnP-AV media server for digital media players
  • High speed data access over Samba (read speed above 60MB/s)
  • Supports both 2.5-inch and 3.5-inch hard drives
  • File browser for WebDAV access
  • iTunes music server
  • Web portal for remote login
  • Free App for iOS and Android based mobile devices
  • Optional TR-069 client allows for automatic firmware updates

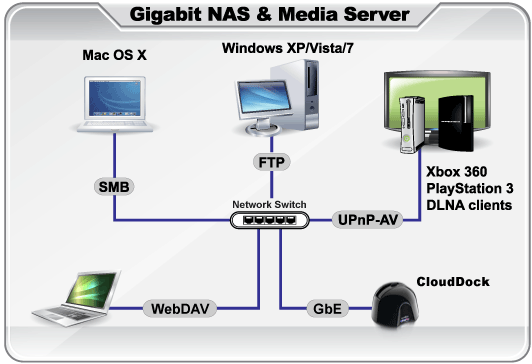

UPnP-AV Media Server

Stream content within your local network to any available UPnP-AV and DLNA compatible devices. Data can also be uploaded to the network drive and shared from multiple workstations via SMB, WebDAV or FTP connection just like on any traditional NAS system.

Supported UPnP Clients

  • Xbox 360 (JPG, MP3, WMV, XviD)
  • PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD)
  • iTunes (MP3)
  • DLNA certified UPnP clients
  • Windows 7 (Windows Media Player)

Media Server

Remote Access & File Browser

CloudDock offers remote web-based access for when you are on the road. With the help of WebDAV, you can manage and view your files right in the web browser or through our free mobile app, you can access the your from on a mobile device such as the iPhone or iPad. Simply login through our web portal or the mobile app and you have immediate access to your files, no matter where you are.

Remote Access

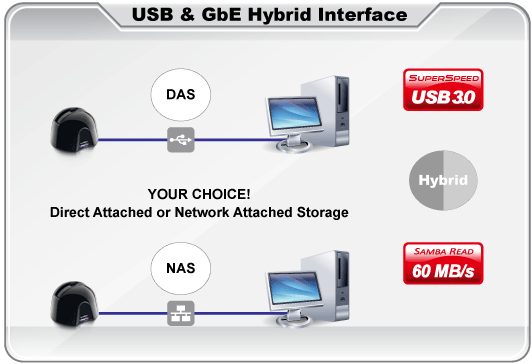

Hybrid Interface

The CloudDock is an innovative product that features both direct attached storage and network attached storage. By directly attaching CloudDock to your computer via the latest USB 3.0 technology, you can take advantage of super-speed transfer rates many times faster than USB 2.0, or, by attaching CloudDock to your home network, you can easily access all your data within the home network.

Hybrid Interface

Specifications

Model No. CD-LNU3JA
Certifications
  • CE
  • FCC
CPU
  • 300MHz
Memory
  • 32MB DDR 400MHz
  • 2MB SPI flash
Case material
  • High quality ABS plastic
Internal hard drive(s)
  • 2.5" or 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 3TB (supports large volumes in excess of 2TB)
  • exFAT (maximum size for single files on NAS/DAS is 127GB)
Front I/O
  • 3 x Status LEDs (power, status, alert)
Rear I/O
  • 1 x Power receptacle
  • 1 x Power switch
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 3.0 device port
  • 1 x Reset button
  • 1 x Firmware update button
  • 1 x Firmware update LED
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Automatic speed negotiation and downshift
  • Low power consumption; advanced power management
USB interface
  • 1 x USB 3.0 device
RAID N/A
Web based GUI
  • HTML GUI for device configuration with file browser for WebDAV.
Network services
  • Samba server
  • FTP server
  • DHCP server
  • PPPoE dialup
  • DDNS (remote login)
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
  • TR-069 client for firmware management (optional)
  • MyAkitio web portal
  • WebDAV server
Printer server N/A
System management
  • Firmware update
  • Network configuration
  • Disk utility
  • Windows & Mac setup utility
Remote access
  • MyAkitio
Mobile App
  • iOS
  • Android
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • USB 3.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • USB 3.0: Mac OS 10.4 or above
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +12V/2A
Dimensions (LxWxH)
  • 15cm x 12.9cm x 9.5cm
Packing accessories
  • CloudDock docking station (HDD not included)
  • USB 3.0 cable
  • Ethernet cable
  • Power adapter
  • User manual
  • Utility CD
Carton/Packaging
  • To be posted
Remarks
  • Only one interface at the time can be used (either LAN or USB connection).
