Overview

CloudSync

The CloudSync is an innovative product that features both direct attached storage and network attached storage. By directly attaching CloudSync to your computer via the latest USB 3.0 technology, you can take advantage of super-speed transfer rates many times faster than USB 2.0, or, by attaching CloudSync to your home network, you can easily access all your data within the home network as well as remotely from any internet connected device. Designed to easily share your data at home, this network drive comes not only with the standard SMB and FTP server but also includes a BitTorrent download manager, USB printer server and UPnP-AV media server.

Features

  • SuperSpeed USB 3.0 device connection
  • Gigabit Ethernet network connection
  • UPnP-AV media server for devices like the Xbox 360, PS3 and WMP12
  • iTunes music server
  • BitTorrent download manager
  • USB printer server
  • Fanless design

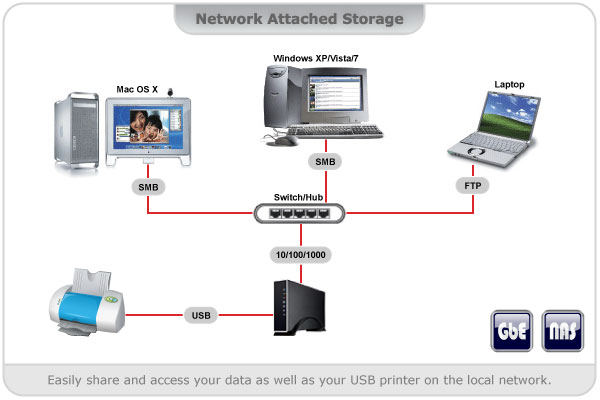

Network Attached Storage & USB Printer Server

Multiple users can access the CloudSync network drive to share and exchange files via Gigabit Ethernet connection. Set up shared folders and let users access the files via local network connection using SMB or FTP. Any attached USB printer also becomes automatically available on the local network for other users, allowing them to print right from their workstations. For the administrator, the web interface offers useful tools such as user and account management, disk utility, plus other system and network tools to manage the LAN disk with ease.

Network Attached Storage

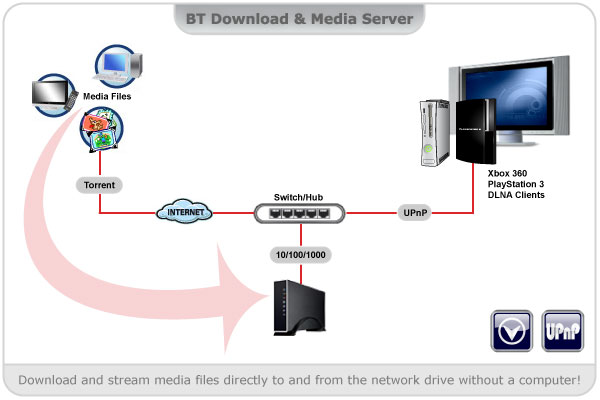

UPnP-AV media server and BitTorrent download manager

Used in conjunction with its built-in BitTorrent™ client, media files can be downloaded from the Internet and saved directly to the internal SATA hard drive. The shared media files on the network drive will be immediately available on the Xbox 360 (WMV, MP3, JPG) and the PlayStation 3 (MPEG-1/2, MP3, JPG) to access and playback on the TV. Best of all, once everything has been set-up, you can turn off your computer and let the CloudSync handle all the downloads and sharing of your media files.

Media Server

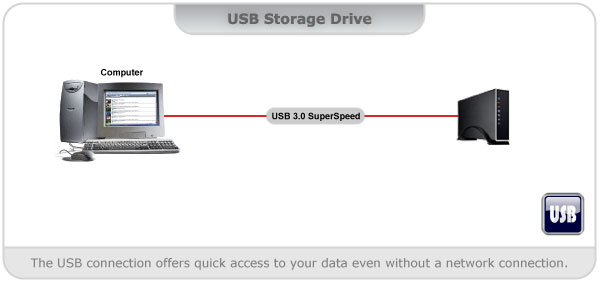

USB Hard Drive

The CloudSync comes with a SuperSpeed USB 3.0 port for convenient access to your data. The common USB connection comes in handy, when a network connection is unavailable or the device is used as a simple USB storage device for extra fast transfer rates.

USB HDD

Specifications

Model No. CY1-LN2U3OAA
Certifications
  • CE
  • FCC
CPU
  • 367MHz
Memory
  • 64MB DDR2 SDRAM
  • 1MB NOR flash
Case material
  • High quality aluminum for optimized heat dissipation
Internal hard drive(s)
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 2TB (supports large volumes in excess of 2TB)
  • FAT32 (maximum size for single files on NAS is 127GB)
Front I/O
  • 3 x Status LEDs (power, data access, system)
  • 4 x Status LEDs indicating the current storage capacity
Rear I/O
  • 1 x Power receptacle
  • 1 x Power button
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 2.0 host connector
  • 1 x USB 3.0 device port
  • 1 x Reset button
  • 1 x Firmware update button
  • 1 x Firmware update LED
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Automatic speed negotiation and downshift
  • Low power consumption; advanced power management
USB interface
  • 1 x USB 2.0 host for printers and USB flash drives (FAT32, read only)
  • 1 x USB 3.0 device
RAID N/A
Web based GUI
  • Simple HTML GUI for basic settings
Network services
  • Samba server
  • FTP server
  • DHCP server
  • PPPoE dialup
  • DDNS (remote login)
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
  • TR-069 client for firmware management (optional)
Printer server
  • Yes (LPD/LPR)
System management
  • Firmware update
  • Network configuration
  • Disk utility
  • Windows & Mac setup utility
Remote access
  • DYNDNS
  • 2MYDNS
Mobile App N/A
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • USB 3.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • USB 3.0: Mac OS 10.4 or above
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +12V/2A
Dimensions (LxWxH)
  • 20.5cm x 13.7cm x 5.7cm
Packing accessories
  • CloudSync enclosure with vertical stand (HDD not included)
  • USB 3.0 cable
  • Ethernet cable
  • Power adapter
  • User manual
  • Utility CD
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
  • Only one interface at the time can be used (either LAN or USB connection).
