CloudSync Plus

CloudSync Plus
click the image above to enlarge


CloudSync Plus CloudSync Plus CloudSync Plus CloudSync Plus

USB 3.0 SuperSpeed
Samba Speed 60MB/s
Compatible with Regza TV Recording
App Store
 Android Market




Overview

CloudSync Plus

This hybrid enclosure is a fully functional network drive (NAS) that allows users to login over the internet plus a USB 3.0 direct attached storage device (DAS) for super-speed file transfers. LED's on the unit's front let you know how much space is being used on your hard drive. Our free iPhone, iPad and Android Apps allow for easy access on mobile devices. Comes with built-in UPnP-AV media server.

Features

  • Hybrid interface with USB 3.0 and Gigabit Ethernet connection
  • Built-in UPnP-AV media server for digital media players
  • High speed data access over Samba (read speed above 60MB/s)
  • File browser for WebDAV access
  • iTunes music server
  • Web portal for remote login
  • Free App for iOS and Android based mobile devices
  • Optional TR-069 client allows for automatic firmware updates

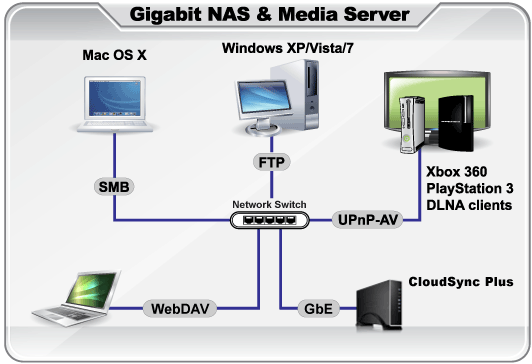

UPnP-AV Media Server

Stream content within your local network to any available UPnP-AV and DLNA compatible devices. Data can also be uploaded to the network drive and shared from multiple workstations via SMB, WebDAV or FTP connection just like on any traditional NAS system.

Supported UPnP Clients

  • Xbox 360 (JPG, MP3, WMV, XviD)
  • PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD)
  • iTunes (MP3)
  • DLNA certified UPnP clients
  • Windows 7 (Windows Media Player)

Media Server

Remote Access & File Browser

CloudSync Plus offers remote web-based access for when you are on the road. With the help of WebDAV, you can manage and view your files right in the web browser or through our free mobile app, you can access the your from on a mobile device such as the iPhone or iPad. Simply login through our web portal or the mobile app and you have immediate access to your files, no matter where you are.

Remote Access

Hybrid Interface

The CloudSync Plus is an innovative product that features both direct attached storage and network attached storage. By directly attaching CloudSync Plus to your computer via the latest USB 3.0 technology, you can take advantage of super-speed transfer rates many times faster than USB 2.0, or, by attaching CloudSync Plus to your home network, you can easily access all your data within the home network.

Hybrid Interface

Specifications

Model No. CY1P-LNU3JA
Certifications
  • CE
  • FCC
CPU
  • 300MHz
Memory
  • 32MB DDR 400MHz
  • 2MB SPI flash
Case material
  • High quality aluminum for optimized heat dissipation
Internal hard drive(s)
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 3TB (supports large volumes in excess of 2TB)
  • exFAT (maximum size for single files on NAS/DAS is 127GB)
Front I/O
  • 3 x Status LEDs (power, data access, system)
  • 4 x Status LEDs indicating the current storage capacity
Rear I/O
  • 1 x Power receptacle
  • 1 x Power button
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 3.0 device port
  • 1 x Reset button
  • 1 x Firmware update button
  • 1 x Firmware update LED
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Automatic speed negotiation and downshift
  • Low power consumption; advanced power management
USB interface
  • 1 x USB 3.0 device
RAID N/A
Web based GUI
  • HTML GUI for device configuration with file browser for WebDAV.
Network services
  • Samba server
  • FTP server
  • DHCP server
  • PPPoE dialup
  • DDNS (remote login)
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
  • TR-069 client for firmware management (optional)
  • myiSharing web portal
  • WebDAV server
Printer server N/A
System management
  • Firmware update
  • Network configuration
  • Disk utility
  • Windows & Mac setup utility
Remote access
  • myiSharing
Mobile App
  • iOS 4.0 or above
  • Android 2.2 to 3.x
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • USB 3.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • USB 3.0: Mac OS 10.4 or above
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 3.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +12V/2A
Dimensions (LxWxH)
  • 20.5cm x 13.7cm x 5.7cm
Packing accessories
  • CloudSync Plus enclosure with vertical stand (HDD not included)
  • USB 3.0 cable
  • Ethernet cable
  • Power adapter
  • User manual
  • Utility CD
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
  • Only one interface at the time can be used (either LAN or USB connection).
  • DO NOT FORMAT THE HARD DRIVE WHEN CONNECTED VIA USB! If you connect it via USB before formatting the hard drive through the web interface of the network drive, you will need to reformat the hard drive before using the NAS functions and therefore lose all data stored on the hard drive.
