MyCloud Duo

MyCloud Duo
click the image above to enlarge


MyCloud Duo MyCloud Duo MyCloud Duo

RAID 0/1
Compatible with Regza TV Recording
App Store
Android




Overview

MyCloud

The personal cloud server provides safe and secure network storage plus the ability to easily share your digital content with family and friends. Our iSharing software makes all of this so easy that almost anyone can do it.

Personal Cloud Server

Features

  • UPnP-AV media server to stream media files on the local network
  • Web based file browser and media player to manage and playback media files
  • Web portal for remote access at home and on-the-road
  • Low power consumption (~18W during operation with 2 x 1.5TB drives)
  • Takes less than 45 seconds to set up (excluding HDD installation and formatting process)
  • Gigabit Ethernet connection
  • Compact design
  • RAID 0 and RAID 1

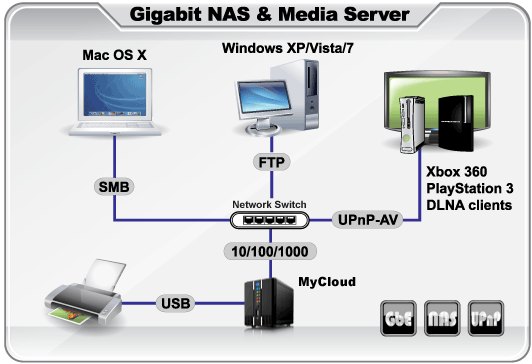

UPnP-AV Media Server

Stream content within your local network to any available UPnP-AV and DLNA compatible devices. Data can also be uploaded to the Gigabit network drive and shared from multiple workstations via SMB or FTP connection just like on any traditional NAS system.

Supported UPnP Clients

  • Xbox 360 (JPG, MP3, WMV, XviD)
  • PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD)
  • iTunes (MP3)
  • DLNA certified UPnP clients
  • Windows 7 (Windows Media Player)

Media Server

Remote Access & File Browser

MyCloud offers remote web-based access for when you are ont the road and a file browser with built-in media player to easily manage and view your files right in the web browser or on your iPhone and iPad. Simply register your device, login through our web portal or the iPhone app and you have immediate access to your files, no matter where you are.

Create your own personal cloud and start sharing files with your family and friends. Let them use your device with the same ease and convenience as you already do and let them enjoy your media collection with you.

Remote Access

Specifications

Model No. MCS2-LN2PA
Certifications
  • CE
  • FCC
CPU
  • Dual-core 750MHz (ARM 11MP with MMU)
Memory
  • 128MB DDR2 SDRAM
  • 256MB NAND flash
Case material
  • High quality aluminum housing with plastic front
Internal hard drive(s)
  • One or two 3.5" SATA-I or SATA-II hard drives (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 3TB per HDD
  • Supports large volumes over 2TB
  • XFS file system
Front I/O
  • 1 x Power button
  • 5 x Status LEDs (system, data access, error, copy)
  • 1 x Copy button
  • 1 x USB 2.0 host connector
Rear I/O
  • 1 x Power receptacle
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 2.0 host connector
  • 1 x Reset button
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Automatic speed negotiation and downshift
  • Low power consumption; advanced power management
USB interface
  • 2 x USB 2.0 host for USB flash drives, hard drives and printers
RAID
  • JBOD
  • RAID 0
  • RAID 1
Web based GUI
  • HTML based GUI with built-in file browser and media player
Network services
  • Samba server
  • NFS server
  • FTP server
  • DHCP server
  • myiSharing web portal (remote login)
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
  • HTTP/FTP downloader
  • Social network connection (e.g. Facebook, Flickr, YouTube)
Printer server
  • Yes (on local area network)
System management
  • Firmware update
  • Network configuration
  • Disk management utility
  • Power management
  • System logs
  • Mail notification
  • Windows & Mac setup utility
  • Device registration
  • User account management with address book
Remote access
  • myiSharing
Mobile App
  • iOS 4.0 or above
  • Android 2.2 to 3.x
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • Internet browser for setup and file access
  • Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • Internet browser for setup and file access
  • Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: DC +12V/4A
Dimensions (LxWxH)
  • 17.7cm x 12.3cm x 8.1cm
Packing accessories
  • NAS enclosure (hard drive not included)
  • Ethernet cable
  • Power adapter
  • Quick installation guide
Carton/Packaging
  • Retail Box Size: 27cm x 22.4cm x 13cm
  • Carton Size: 57cm x 42cm x 25cm (6pcs per carton)
Remarks
  • Free application for iPhone and iPad available on App Store.
  • If the MyCloud is purchased with HDD's installed, setup will normally take less than 45 seconds. However, set up times may be longer if HDD installation and formatting are required.
