MyCloud Pro

click the image above to enlarge

Intel Atom Inside

Overview

MyCloud

The personal cloud server provides safe and secure network storage plus the ability to easily share your digital content with family and friends. Our MyCloud software makes all of this so easy that almost anyone can do it.

Features

UPnP-AV media server to stream media files on the local network
Web based file browser and media player to manage and playback media files
Video transcoding application to convert incompatible videos to a commonly used format
Takes less than 45 seconds to set up (excluding HDD installation and formatting process)
RAID 0 for large storage capacities and RAID 1 for data protection
Free web portal for remote access at home and on-the-road
Your own personal cloud storage without monthly fees

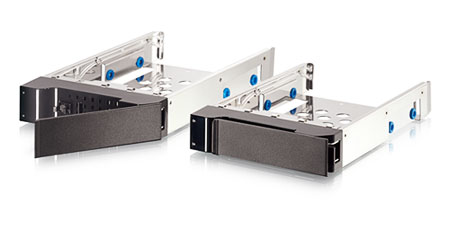

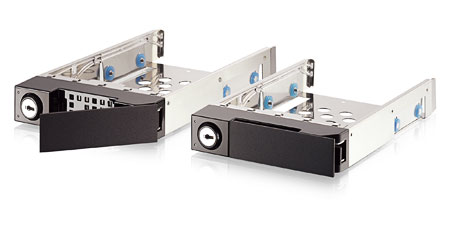

Removable HDD trays for easy drive installation
Gigabit Ethernet connection

mycloudpro-overview1

UPnP-AV Media Server

Stream content within your local network to any available UPnP-AV and DLNA compatible devices. Data can also be uploaded to the Gigabit network drive and shared from multiple workstations via SMB or FTP connection just like on any traditional NAS system.

Supported UPnP Clients

Xbox 360 (JPG, MP3, WMV, XviD)
PlayStation 3 (JPG, MP3, MPEG-1, MPEG-2, XviD)
iTunes (MP3)
DLNA certified UPnP clients
Windows 7 (Windows Media Player)

mycloudpro-overview2

Remote Access & File Browser

MyCloud offers remote web-based access for when you are on the road and a file browser with built-in media player to easily manage and view your files right in the web browser or on your iPhone and iPad. Simply register your device, login through our web portal or the mobile app and you have immediate access to your files, no matter where you are.

Create your own personal cloud and start sharing files with your friends and family. Let them use your device with the same ease and convenience as you already do and let them enjoy your media collection with you.

mycloudpro-overview3

Specifications

Model No.	MCP2-LN23IA
Certifications	CE FCC
CPU	Intel Atom processor D525 (Dual-core 1.8GHz, 1MB Cache)
Memory	1GB DDR3-800 SODIMM
Case material	High quality aluminum housing with plastic front
Internal hard drive(s)	One or two 3.5" SATA-I, SATA-II or SATA-III hard drives Capacity 80GB - 4TB per HDD Supports large volumes over 2TB XFS file system
Front I/O	2 x HDD LEDs per tray (power & data access) 1 x Power button 1 x System LED 2 x HDD LEDs (data access) 1 x Backup LED 1 x Backup button 1 x USB 2.0 host connector
Rear I/O	1 x Power receptacle 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity 2 x USB 3.0 host connector 1 x Reset button
LAN interface	1000BASE-T IEEE 802.3ab 100BASE-TX IEEE 802.3u 10BASE-T IEEE 802.3 Auto MDIX Automatic speed negotiation and downshift Low power consumption; advanced power management
USB interface	1 x USB 2.0 host for USB backup from flash drives and hard drives 2 x USB 3.0 hosts for USB flash drives, hard drives and printers
RAID	JBOD RAID 0 RAID 1
Web based GUI	HTML based GUI with built-in file browser and media player
Network services	Samba server NFS server FTP server DHCP server UPnP-AV media server iTunes music server BitTorrent client HTTP/FTP downloader MyAkitio web portal (remote login) Social network connection (e.g. Facebook, Flickr, YouTube)
Printer server	Yes (on local area network)
System management	Firmware update Network configuration Disk management utility Power management System logs Mail notification Windows & Mac setup utility Device registration User account management with address book
Remote access	MyiSharing web portal at www.myisharing.com DDNS at www.dyn.com
Mobile App	iOS 4.0 or above Android 2.2 to 3.x
System requirements (PC)	LAN: Windows XP/Vista/7 Internet browser for setup and file access Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet)
System requirements (Mac)	LAN: Mac OS 10.2 or above Internet browser for setup and file access Your hardware device must have the correct corresponding port (e.g. Gigabit Ethernet)
System environment	Operating Temperature: 5°C ~ 35°C Storage Temperature: -20°C ~ 70°C Relative Humidity: 5% ~ 95% (non-condensing)
Power supply	External power supply (UL, cUL, CE, TUV approved) Input: AC 100-240V, 1.2A, 50-60Hz Output: DC +12V/5A
Dimensions (LxWxH)	24.2cm x 13.4cm x 11.6cm
Packing accessories	NAS enclosure (hard drive(s) not included) Ethernet cable Power adapter Setup guide
Carton/Packaging	Retail Box Size: 32.8 x 25.4 x 15.5 cm Carton Size (6pcs per carton): 54.2 x 49.3 x 35 cm
Remarks	Free application for iPhone and iPad available on App Store. If the MyCloud is purchased with HDD's installed, setup will normally take less than 45 seconds. However, set up times may be longer if HDD installation and formatting are required.
