PD-SATA USB/GbE

PD-SATA USB/GbE
click the image above to enlarge


PD-SATA USB/GbE PD-SATA USB/GbE PD-SATA USB/GbE

Compatible with Regza TV Recording




Overview

PD-SATA

The PD-SATA USB/GbE offers both high speed USB 2.0 and Gigabit Ethernet connection in one unit! A slim, stylish and powerful aluminum enclosure for your 3.5" SATA hard drive, featuring a fanless design and passive cooling. Designed to easily share your data on the home network, this network drive comes not only with the standard SMB and FTP server but also includes a BitTorrent download manager, USB printer server and UPnP media server for the Xbox 360 and PlayStation 3.

Features

  • Gigabit Ethernet network connection
  • Xbox 360 & PS3 media server (audio/video/photos)
  • BitTorrent download manager
  • USB printer server
  • USB device connection
  • Fanless design

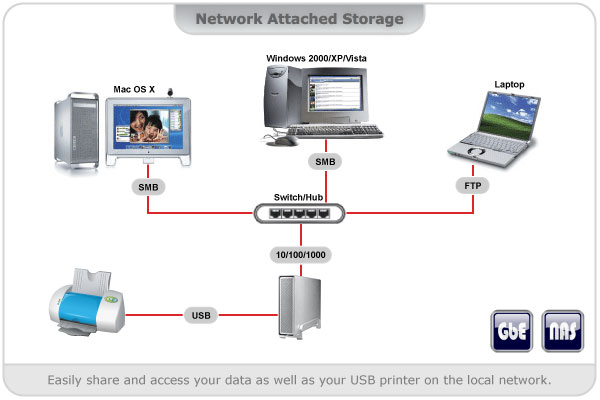

Network Attached Storage & USB Printer Server

Multiple users can access the PD-SATA USB/GbE network drive to share and exchange files via Gigabit Ethernet connection. Set up shared folders and let users access the files via local network connection using SMB or FTP. Any attached USB printer also becomes automatically available on the local network for other users, allowing them to print right from their workstations. For the administrator, the web interface offers useful tools such as user and account management, disk utility, plus other system and network tools to manage the LAN disk with ease.

Network Attached Storage

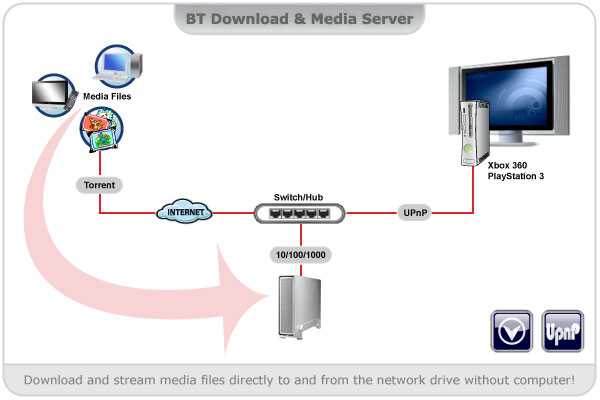

UPnP media server for Xbox 360 & PS3 plus download manager

Used in conjunction with its built-in BitTorrent™ client, media files can be downloaded from the Internet and saved directly to the internal SATA hard drive. The shared media files on the network drive will be immediately available on the Xbox 360 (WMV, AVI, MP3, WMA, JPG) and the PlayStation 3 (MPG, MP4, AVI, WMV, MP3, WMA, JPG) to access and playback on the TV. Best of all, once everything has been set, you can turn off your computer and let the PD-SATA USB/GbE handle all the downloads and sharing of your media files.

Media Server

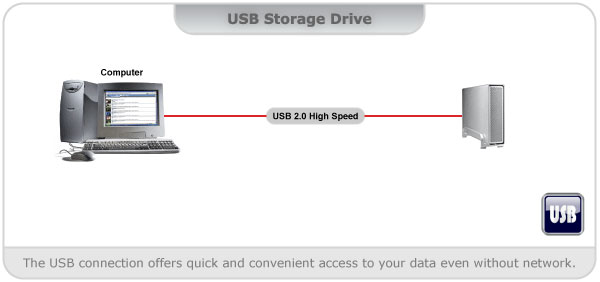

USB Hard Drive

The PD-SATA USB/GbE comes with a high speed USB 2.0 port for quick and convenient access to your data. The common USB connection comes in handy when there is no network connection available or the device is used as a simple USB storage device.

USB HDD

Specifications

Model No. PD-LN2U2SRS
Certifications
  • CE
  • FCC
CPU
  • 250MHz
Memory
  • 32MB SDRAM
  • 4MB NOR flash
Case material
  • Aluminum with internal metal chassis for optimized heat dissipation
Internal hard drive(s)
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 1.5TB
  • FAT32 (maximum size for single files up to 127GB)
Front I/O
  • 1 x Status LED (power/data access)
Rear I/O
  • 1 x Power receptacle
  • 1 x Power switch
  • 1 x RJ45 connector (10/100/1000) with two LEDs for link and activity
  • 1 x USB 2.0 host connector
  • 1 x USB 2.0 device port
  • 1 x Reset button
LAN interface
  • 1000BASE-T IEEE 802.3ab
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Half-duplex and full-duplex operation
USB interface
  • 1 x USB 2.0 host (printers only)
  • 1 x USB 2.0 device
RAID N/A
Web based GUI
  • Simple HTML GUI for basic settings
Network services
  • Samba server
  • FTP server
  • NFS server
  • DHCP server
  • PPPoE dialup
  • DDNS (remote login)
  • UPnP-AV media server
  • iTunes music server
  • BitTorrent client
Printer server
  • Yes (LPD/LPR)
System management
  • Firmware update
  • Network configuration
  • Disk utility
  • Windows & Mac setup utility
Remote access
  • DYNDNS
  • 2MYDNS
Mobile App N/A
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 2.0 or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +12V/2A
Dimensions (LxWxH)
  • 22.8cm x 13.7cm x 3.5cm
Packing accessories
  • PD-SATA enclosure with vertical stand (HDD not included)
  • USB 2.0 cable
  • Ethernet cable
  • Power adapter
  • User manual
  • Utility CD
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
  • Only one interface at the time can be used (either LAN or USB connection).
