Overview

PD-SATA

The PD-SATA USB/LAN offers both high speed USB 2.0 and LAN connection in one unit! A slim, stylish and powerful aluminum enclosure for your 3.5" SATA hard drive, designed to share and access your data on the home network. Features fanless design and passive cooling, ideal for home users and quiet working environments.

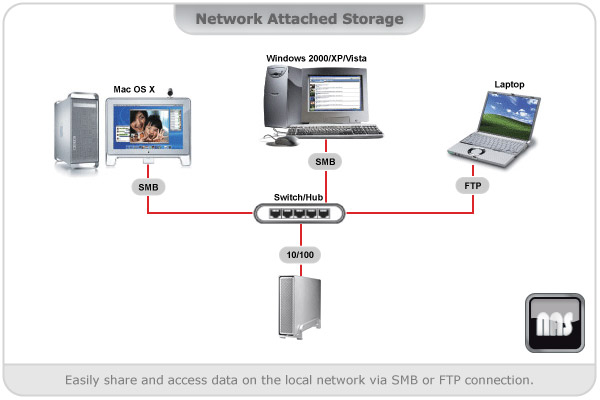

Network Attached Storage (SMB/FTP)

Multiple users can access the PD-SATA USB/LAN to share and exchange files via Ethernet connection. Set up shared folders and let users access the files via local network connection using SMB or FTP. For admins, the web interface offers useful tools such as user and share management, disk utility, plus other system and network tools to let you manage the LAN disk with ease.

Network Attached Storage

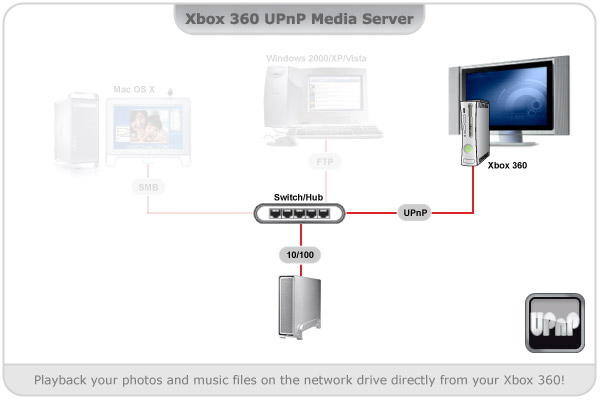

Xbox 360 Media Server (UPnP)

Store your photos and music files on the PD-SATA USB/LAN, define the directory that you would like to share and the files (MP3, WMA, JPEG) will be immediately available on the Xbox 360 to playback on the TV. Simply access your photos or music library on the TV and the UPnP server will show up automatically, making all the shared photos and music files available for access.

Media Server

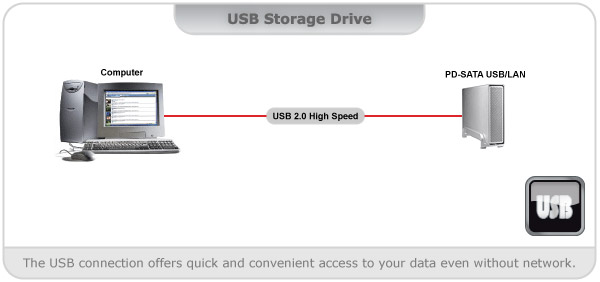

USB Hard Drive

The PD-SATA USB/LAN comes with a high speed USB 2.0 port for quick and convenient access to your data. The common USB connection comes in handy when there is no network connection available or the device is used as a simple USB storage device.

USB HDD

Specifications

Model No. PD-LN2U2RGS
Certifications
  • CE
  • FCC
CPU
  • 150MHz
Memory
  • 8MB SDRAM
  • 1MB NOR flash
Case material
  • Aluminum with internal metal chassis for optimized heat dissipation
Internal hard drive(s)
  • 3.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 80GB - 1.5TB
  • FAT32
Front I/O N/A
Rear I/O
  • 1 x Power receptacle
  • 1 x Power switch
  • 1 x RJ45 connector (10/100)
  • 1 x USB 2.0 device port
  • 1 x Reset button
  • 3 x Status LEDs (HDD, system, link)
LAN interface
  • 100BASE-TX IEEE 802.3u
  • 10BASE-T IEEE 802.3
  • Auto MDIX
  • Half-duplex and full-duplex operation
USB interface
  • 1 x USB 2.0 device
RAID N/A
Web based GUI
  • Simple HTML GUI for basic settings
Network services
  • Samba server
  • FTP server
  • DHCP server
  • UPnP-AV media server (photos and music only for Xbox360
Printer server
  • No
System management
  • Firmware update
  • Network configuration
  • Disk utility
  • Windows setup utility
Remote access N/A
Mobile App N/A
System requirements (PC)
  • LAN: Windows XP/Vista/7
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 2.0 or PCI card)
System requirements (Mac)
  • LAN: Mac OS 10.2 or above
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. Ethernet, USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, CE, TUV approved)
  • Input: AC 100-240V, 1.2A, 50-60Hz
  • Output: +5V/2A, +12V/2A
Dimensions (LxWxH)
  • 22.8cm x 13.7cm x 3.5cm
Packing accessories
  • PD-SATA enclosure with vertical stand (HDD not included)
  • USB 2.0 cable
  • Ethernet cable
  • Power adapter
  • User manual
  • Utility CD
Carton/Packaging
  • Retail Box Size: 32cm x 24cm x 10.5cm
  • Carton Size: 56cm x 51cm x 35cm (10pcs per carton)
Remarks
  • Only one interface at the time can be used (either LAN or USB connection).
