SK-5250




Overview

SK-5250

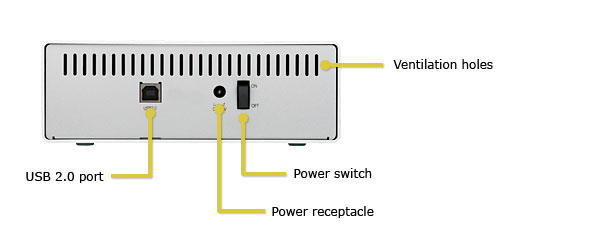

The SK5250 aluminum enclosure is designed for 5.25" optical disc drives with a SATA interface. It is ruggedly constructed, yet light weight, fanless and comes with an external AC Adaptor.

Features

  • Popular USB 2.0 High Speed interface
  • Designed for 5.25" optical disc drives
  • Rugged aluminum casing
  • Fanless

SK-5250 U2

Specifications

Model No. SK5-SAU2JS
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • 5.25" SATA optical disc drive
  • Drive length 16.5cm - 18.5cm
Interface/Ports
  • 1x USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • External power supply (UL, cUL, PSE, CE)
  • Input: AC 100-240V, 0.5A, 50-60Hz
  • Output: DC +12V/2A
Dimensions (LxWxH)
  • 23.6cm x 17cm x 6cm
Packing accessories
  • SK-5250 enclosure
  • USB 2.0 cable
  • Power adapter
  • User manual
Carton/Packaging
  • Retail Box Size: 31cm x 28.5cm x 12cm
  • Carton Size: 59cm x 38cm x 34cm (6pcs per carton)
