Overview

DC-SATA

The DC-SATA hard drive enclosure for 2.5" SATA drives provides a combination of cutting-edge technology, durability, flexibility and portability. Extra slim design and aluminum casing, made for high performance at your desktop and on-the-go.

Features

  • USB 2.0 High Speed interface
  • Designed for 2.5" drives up to 9.5mm
  • Durable, compact and portable
  • Fanless

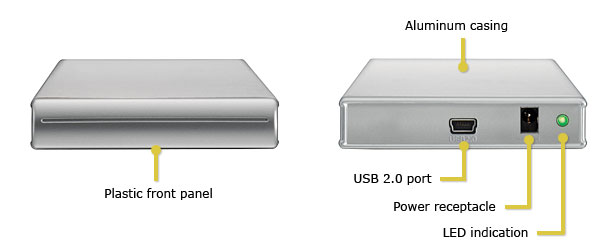

DC-SATA USB 2.0 Hard Drive Enclosure

Specifications

Model No. DC-U2JS
Certifications
  • CE
  • FCC
Case material
  • Anodized aluminum
Application
  • 2.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 20GB - 1TB
  • Height 9.5mm
Interface/Ports
  • 1x Mini USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • Bus Power 5V/500mA (host computer has to provide sufficient USB bus power)
  • Optional power supply (DC +5.2V/2A)
Dimensions (LxWxH)
  • 12.7cm x 7.5cm x 1.4cm
Packing accessories
  • DC-SATA enclosure (HDD not included)
  • USB 2.0 cable
  • User manual
Carton/Packaging
  • Retail Box Size: 23cm x 16cm x 4cm
  • Carton Size: 44cm x 34cm x 27cm (20pcs per carton)
