Overview

SK-2500

The SK-2500 laptop hard drive enclosure provides a combination of cutting-edge technology, durability, flexibility and portability. Slim, compact and simple to use, this portable aluminum enclosure is designed for the latest 2.5" SATA hard drives.

Features

  • USB 2.0 mass storage compliant
  • Designed for 2.5" drives up to 12.5mm
  • Large heatsink for passive cooling
  • Durable, compact and portable
  • Stackable
  • Fanless

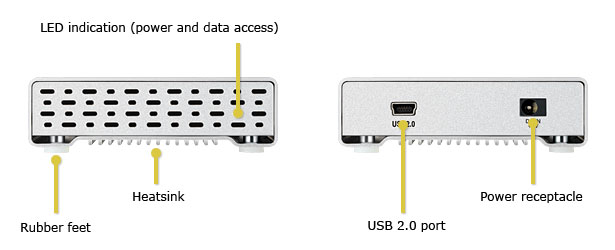

SK-2500 USB 2.0 Portable Hard Drive Enclosure

Specifications

Model No. SK2-U2JS
Certifications
  • CE
  • FCC
Case material
  • High quality aluminum for optimized heat dissipation
Application
  • 2.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
  • Capacity 20GB - 1TB
  • Height 9.5mm or 12.5mm
Interface/Ports
  • 1x Mini USB 2.0 High Speed port
Data transfer
  • USB 2.0 up to 480Mbps (60MB/s)
  • USB 1.1 up to 12Mbps (1.5MB/s)
System requirements (PC)
  • USB 2.0: Windows XP/Vista/7
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System requirements (Mac)
  • USB 2.0: Mac OS 10.2 or above
  • Your hardware device must have the correct corresponding port (e.g. USB 2.0, USB 1.1 or PCI card)
System environment
  • Operating Temperature: 5°C ~ 40°C
  • Operating Humidity: 20%RH ~ 80%RH
  • Storage Temperature: -20°C ~ 70°C
  • Storage Humidity: 10%RH ~ 90%RH
Power supply
  • Bus Power 5V/500mA (host computer has to provide sufficient USB bus power)
  • Optional power supply (DC +5.2V/2A)
Dimensions (LxWxH)
  • 12.5cm x 7.8cm x 2.4cm
Packing accessories
  • SK-2500 enclosure (HDD not included)
  • USB 2.0 cable
  • User manual
Carton/Packaging
  • Retail Box Size: 22.7cm x 15.7cm x 4cm
  • Carton Size: 45cm x 33.4cm x 26cm (20pcs per carton)
